Printer settings
Choose Actual size or 100% in the print dialog. Fit to page can enlarge or reduce a drawing to the printable area, while Shrink to fit can reduce an oversized page.
Match the paper size and orientation to the sheets you generated, then look at the preview. If the ruler or seam line is clipped, give the printer more safe margin. Keep the print scale at 100%.
Check the ruler

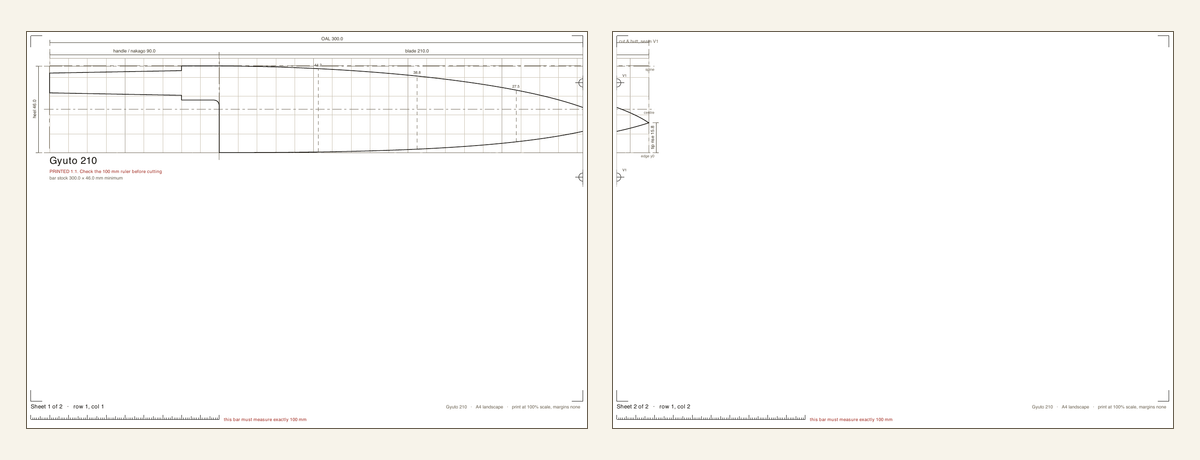

There is a 100 mm ruler along the bottom of each sheet. Put a steel rule or calipers against it and check that it really is 100 mm.
If the ruler is wrong, go back to the print settings. I would keep the design at the dimensions you want instead of changing it to compensate for a printer setting.
Join the sheets
A longer knife can run over several sheets. They are numbered and labelled at each seam. Trim or overlap as the seam label indicates, line up where the drawing continues across the seam, and tape the pages from the back.
If you prefer to overlap and glue the paper, choose overlap in the print settings first. That leaves the extra strip for the join.
Put it on the steel
Once you are happy with the print, you can stick it down or trace the outline with a scribe. Glue can wet and stretch paper a little, makes it easy to rip.
Have a last look at the tang, holes and overall fit on the stock. This is the easy point to notice that a pin needs moving or a handle needs more room.
What a small scaling error does
If the 100 mm ruler measures 97 mm, the print is at 97% scale. A 210 mm blade would come out about 203.7 mm long. The same shrinkage affects the handle and hole spacing, so changing just the blade length in the editor cannot repair the whole drawing.
Check the paper size at both ends: the sheets generated by the editor and the paper selected in the print dialog. A4 and Letter are different sizes. Printing one onto the other with a fitting option can scale the drawing or clip its edges.
| What you see | What to check |
|---|---|
| 100 mm ruler measures 96–98 mm | Fit, Shrink or a browser printable-area scaling option. Select Actual size or custom 100%. |
| Right scale, clipped marks | Printer margins and paper size. Increase the editor’s safe margin. |
| Paper size changed during PDF printing | The PDF’s page size and the selected printer paper. Keep scaling off and regenerate for the actual paper if needed. |
